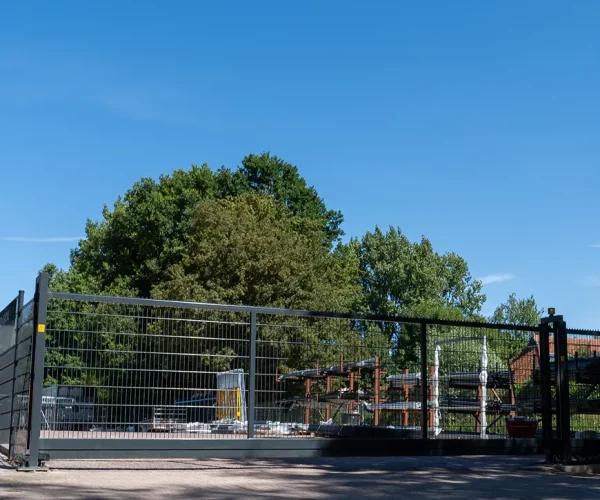

HIS DOUBLE-BAR ON LOCATION
Powerful Engineering, Smart Details
The gate features a sleek frame filled with a double-bar mesh panel (wire combination 8/6/8 mm) with a mesh size of 50 × 200 mm. This creates a solid yet transparent barrier that remains visually clear while being sturdy and intrusion-resistant. From a gate height of 1500 mm, the top is standardly equipped with a sharp spike row, providing an extra layer of security.
The sliding gate is available with a clear opening of up to 10 meters, giving the installation a visually clean appearance while remaining practical in use.
Engineering That Stands Strong
The HIS Sliding Gate features a robust, profiled bottom beam (120 × 220 mm) with an integrated C-profile. Inside this profile run two tilting wheel sets, each equipped with eight ball-bearing, water- and dust-proof wheels. This ensures the gate slides smoothly, unaffected by dirt or frost.
Side guidance is provided by two rubber upper guide wheels in the drive portal. Both the drive and catch portals are made from 80 × 80 mm steel profiles, ensuring stable installation. The gate comes standard with a Locinox cylinder lock with stainless steel internals and a matching lock receiver.
Specifications
Gate Frame
teel tube bottom beam with welded C-profile (dimensions: 120 × 220 mm), gate frame 60 × 60 mm all around.
Gate Infill
Welded double-bar 8/6/8 mesh, mesh size 50 × 200 mm.
Wheel Sets
2 tilting sets, each with 9 sealed ball-bearing rollers.
Portals
1 drive portal + 1 catch portal on base plate, made from 80 × 80 mm steel profiles.
Mounting Plate
Includes 1 wheel-set plate for mounting the rear wheel set.
Dimensions
ral cat 1 coating
With no extra cost
The standard version is hot-dip galvanized in accordance with NEN-EN-ISO 1461, but your fence can also be coated in any desired Cat. 1 RAL color at no additional cost. This way it blends seamlessly into any environment. Whether you choose sleek black, industrial anthracite or another shade, the finish is durable and low-maintenance.
CE-markING Safety First
The sliding gates from HIS Gates comply with all European safety standards and are therefore CE marked. Sliding gates fall under the Machinery Directive MD2006/42/EC, NEN-EN 13241, and NEN-EN 12453, which ensure that potential hazards are properly secured. To prevent accidents, our gates meet the strictest safety standards and are equipped with the most reliable safety components, with the CE marking demonstrating that you have purchased a safe and certified product.
For those who want comfort and control, our gates are also available in an electrically operated version. Ideal for automatic access to business sites, residential areas, or parking lots.
Electric Version Available
