DOUBLE SWING GATE
HIS D
EXCL_DDP_INTRO

The HIS D Double Swing Gate offers the perfect combination of representative elegance and robust security. Thanks to its refined finish with through bars and clean lines, this gate is ideal for locations where appearance is as important as access control. Examples include business premises, luxury residential complexes, or prestigious entrances

Safety and Design in Balance

Brochure
Contact

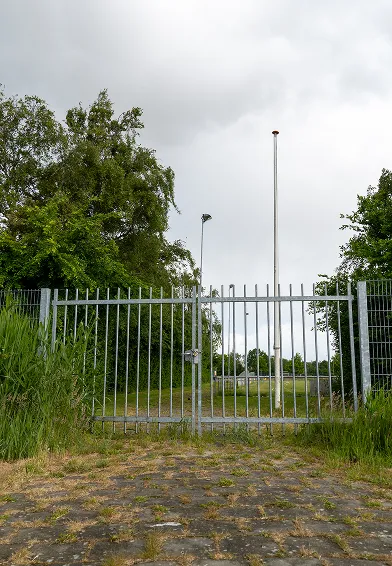

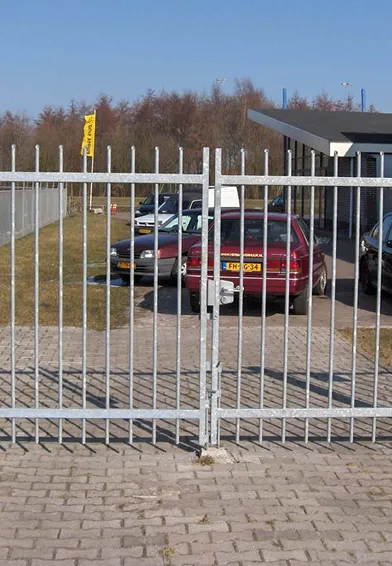

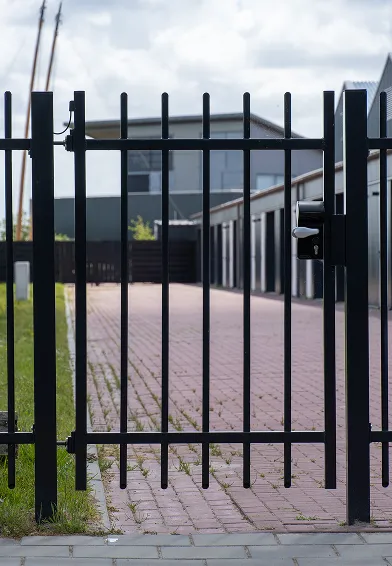

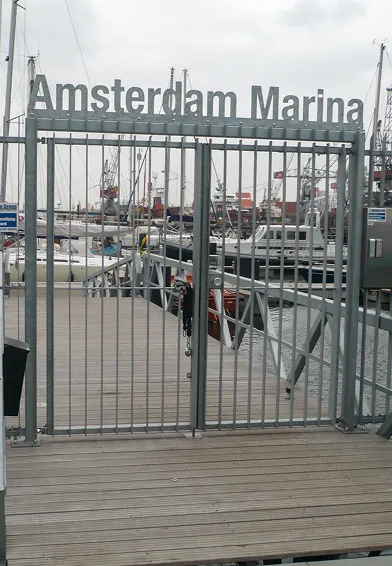

HIS D oN LOCATION

EXCL_DDP_C 5
EXCL_DDP_C 4
EXCL_DDP_C 3
EXCL_DDP_C 2
EXCL_DDP_C 1

Stylish Access with an Exclusive Look

The HIS D is designed with attention to both detail and security. The through bars of Ø 25 mm are firmly welded into the steel frame, and from a gate height of 1500 mm, the top is standardly cut at a sharp 45-degree angle. This makes the gate more difficult to climb without compromising its elegant design.

Engineering That Stands Strong

The gate frame is constructed from sturdy steel tube profiles and clad with through bars of Ø 25 mm, with a standard center-to-center spacing of 150 mm. The wing height is slightly lower than the overall gate height, resulting in approximately 50 mm ground clearance. From 1500 mm, the bars are standardly cut at a sharp angle for additional security. The gate posts are extended 800 mm to allow deep in-ground installation for maximum stability. Locinox hinges rotate 180 degrees and are adjustable in four dimensions, ensuring precise alignment. The locking mechanism consists of a solid Locinox surface-mounted lock with a Secura lock receiver, providing reliable and secure closure.

EXCL_DDP_HUIS

Dimensions

Width x Hight (cm)Gate Wings (mm)1 = Headers
2 = Beams		Gate posts C-C
Type 200 x 802 x 950 x 750
Type 200 x 1002 x 950 x 950
Type 200 x 1252 x 950 x 12001 = □ koker 40x40□ 80 x 80
Type 200 x 1502 x 950 x 14502 = □ koker 60x40h.o.h. =
Type 200 x 1802 x 950 x 17502120 mm
Type 200 x 2002 x 950 x 1950
Type 200 x 2252 x 950 x 2200
Type 200 x 2502 x 950 x 2370
Type 250 x 802 x 1250 x 750
Type 250 x 1002 x 1250 x 950
Type 250 x 1252 x 1250 x 12001 = □ koker 40x40□ 80 x 80
Type 250 x 1502 x 1250 x 14502 = □ koker 60x40h.o.h. =
Type 250 x 1802 x 1250 x 17502720 mm
Type 250 x 2002 x 1250 x 1950
Type 250 x 2252 x 1250 x 2200
Type 250 x 2502 x 1250 x 2370
Type 300 x 802 x 1550 x 750
Type 300 x 1002 x 1550 x 950
Type 300 x 1252 x 1550 x 12001 = □ koker 40x40□ 80 x 80
Type 300 x 1502 x 1550 x 14502 = □ koker 60x40h.o.h. =
Type 300 x 1802 x 1550 x 17503320 mm
Type 300 x 2002 x 1550 x 1950
Type 300 x 2252 x 1550 x 2200
Type 300 x 2502 x 1550 x 2370
Type 350 x 802 x 1700 x 750
Type 350 x 1002 x 1700 x 950
Type 350 x 1252 x 1700 x 12001 = □ koker 40x40□ 80 x 80
Type 350 x 1502 x 1700 x 14502 = □ koker 60x40h.o.h. =
Type 350 x 1802 x 1700 x 17503620 mm
Type 350 x 2002 x 1700 x 1950
Type 350 x 2252 x 1700 x 2200
Type 350 x 2502 x 1700 x 2370
Type 400 x 802 x 2000 x 750
Type 400 x 1002 x 2000 x 950
Type 400 x 1252 x 2000 x 12001 = □ koker 40x40□ 100 x 100
Type 400 x 1502 x 2000 x 14502 = □ koker 60x40h.o.h. =
Type 400 x 1802 x 2000 x 17504240 mm
Type 400 x 2002 x 2000 x 1950
Type 400 x 2252 x 2000 x 2200
Type 400 x 2502 x 2000 x 2370
Type 450 x 802 x 2300 x 750
Type 450 x 1002 x 2300 x 950
Type 450 x 1252 x 2300 x 12001 = □ koker 40x40□ 100 x 100
Type 450 x 1502 x 2300 x 14502 = □ koker 60x40h.o.h. =
Type 450 x 1802 x 2300 x 17504840 mm
Type 450 x 2002 x 2300 x 1950
Type 450 x 2252 x 2300 x 2200
Type 450 x 2502 x 2300 x 2370
Type 500 x 802 x 2450 x 750
Type 500 x 1002 x 2450 x 950
Type 500 x 1252 x 2450 x 12001 = □ koker 40x40□ 100 x 100
Type 500 x 1502 x 2450 x 14502 = □ koker 60x40h.o.h. =
Type 500 x 1802 x 2450 x 17505140 mm
Type 500 x 2002 x 2450 x 1950
Type 500 x 2252 x 2450 x 2200
Type 500 x 2502 x 2450 x 2370
Type 550 x 802 x 2700 x 750
Type 550 x 1002 x 2700 x 950
Type 550 x 1252 x 2700 x 12001 = □ koker 40x40□ 100 x 100
Type 550 x 1502 x 2700 x 14502 = □ koker 60x40h.o.h. =
Type 550 x 1802 x 2700 x 17505640 mm
Type 550 x 2002 x 2700 x 1950
Type 550 x 2252 x 2700 x 2200
Type 550 x 2502 x 2700 x 2370
Type 600 x 802 x 2900 x 750
Type 600 x 1002 x 2900 x 950
Type 600 x 1252 x 2900 x 12001 = □ koker 40x40□ 120 x 120
Type 600 x 1502 x 2900 x 14502 = □ koker 60x40h.o.h. =
Type 600 x 1802 x 2900 x 17506060 mm
Type 600 x 2002 x 2900 x 1950
Type 600 x 2252 x 2900 x 2200
Type 600 x 2502 x 2900 x 2370
Type 650 x 1002 x 3200 x 950
Type 650 x 1252 x 3200 x 12001 = □ koker 40x40□ 120 x 120
Type 650 x 1502 x 3200 x 14502 = □ koker 60x40h.o.h. =
Type 650 x 1802 x 3200 x 17506660 mm
Type 650 x 2002 x 3200 x 1950
Type 650 x 2252 x 3200 x 2200
Type 650 x 2502 x 3200 x 2370
Type 700 x 1002 x 3500 x 950
Type 700 x 1252 x 3500 x 12001 = □ koker 60x40□ 120 x 120
Type 700 x 1502 x 3500 x 14502 = □ koker 60x60h.o.h. =
Type 700 x 1802 x 3500 x 17507260 mm
Type 700 x 2002 x 3500 x 1950
Type 700 x 2252 x 3500 x 2200
Type 700 x 2502 x 3500 x 2370
Type 750 x 1002 x 3700 x 950
Type 750 x 1252 x 3700 x 12001 = □ koker 60x40□ 120 x 120
Type 750 x 1502 x 3700 x 14502 = □ koker 60x60h.o.h. =
Type 750 x 1802 x 3700 x 17507660 mm
Type 750 x 2002 x 3700 x 1950
Type 750 x 2252 x 3700 x 2200
Type 750 x 2502 x 3700 x 2370
Type 800 x 1002 x 3950 x 950
Type 800 x 1252 x 3950 x 12001 = □ koker 60x40□ 120 x 120
Type 800 x 1502 x 3950 x 14502 = □ koker 60x60h.o.h. =
Type 800 x 1802 x 3950 x 17508190 mm
Type 800 x 2002 x 3950 x 1950
Type 800 x 2252 x 3950 x 2200
Type 800 x 2502 x 3950 x 2370
Type 850 x 1002 x 4250 x 950
Type 850 x 1252 x 4250 x 12001 = □ koker 60x40□ 150 x 150
Type 850 x 1502 x 4250 x 14502 = □ koker 60x60h.o.h. =
Type 850 x 1802 x 4250 x 17508790 mm
Type 850 x 2002 x 4250 x 1950
Type 850 x 2252 x 4250 x 2200
Type 850 x 2502 x 4250 x 2370
Type 900 x 1002 x 4400 x 950
Type 900 x 1252 x 4400 x 12001 = □ koker 60x40□ 150 x 150
Type 900 x 1502 x 4400 x 14502 = □ koker 60x60h.o.h. =
Type 900 x 1802 x 4400 x 17509090 mm
Type 900 x 2002 x 4400 x 1950
Type 900 x 2252 x 4400 x 2200
Type 900 x 2502 x 4400 x 2370
Type 950 x 1002 x 4700 x 950
Type 950 x 1252 x 4700 x 12001 = □ koker 60x40□ 150 x 150
Type 950 x 1502 x 4700 x 14502 = □ koker 60x60h.o.h. =
Type 950 x 1802 x 4700 x 17509690 mm
Type 950 x 2002 x 4700 x 1950
Type 950 x 2252 x 4700 x 2200
Type 950 x 2502 x 4700 x 2370
Type 1000 x 1002 x 5000 x 950
Type 1000 x 1252 x 5000 x 12001 = □ koker 60x40□ 150 x 150
Type 1000 x 1502 x 5000 x 14502 = □ koker 60x60h.o.h. =
Type 1000 x 1802 x 5000 x 175010290 mm
Type 1000 x 2002 x 5000 x 1950
Type 1000 x 2252 x 5000 x 2200
Type 1000 x 2502 x 5000 x 2370
Type 1100 x 1502 x 5450 x 1450
Type 1100 x 1802 x 5450 x 17501 = □ koker 60x40□ 150 x 150
Type 1100 x 2002 x 5450 x 19502 = □ koker 60x60h.o.h. =
Type 1100 x 2252 x 5450 x 220011190 mm
Type 1100 x 2502 x 5450 x 2370
Type 1200 x 1502 x 5900 x 1450
Type 1200 x 1802 x 5900 x 17501 = □ koker 60x40□ 150 x 150
Type 1200 x 2002 x 5900 x 19502 = □ koker 60x60h.o.h. =
Type 1200 x 2252 x 5900 x 220012090mm
Type 1200 x 2502 x 5900 x 2370

ral cat 1 coating

With no extra cost

The standard version is hot-dip galvanized in accordance with NEN-EN-ISO 1461, but your fence can also be coated in any desired Cat. 1 RAL color at no additional cost. This way it blends seamlessly into any environment. Whether you choose sleek black, industrial anthracite or another shade, the finish is durable and low-maintenance.

CE-marking Safety First​

The gates from HIS Gates comply with all European safety standards and are therefore CE marked. Sliding gates fall under the Machinery Directive MD2006/42/EC, NEN-EN 13241, and NEN-EN 12453, which ensure that potential hazards are properly secured. To prevent accidents, our gates meet the strictest safety standards and are equipped with the most reliable safety components, with the CE marking proving that you have purchased a safe product.

Rectangle 246

For those who want comfort and control, our gates are also available in an electrically operated version. Ideal for automatic access to business sites, residential areas, or parking lots.

Electric Version Available

More about PREFAB ELEctric
