DOUBLE SWING GATE
DOUBLE-BAR
DBBL_DDP_INTRO

With the HIS Double-Bar Double Swing Gate, you create a robust and reliable access point to any site. This gate combines the strength of double-bar mesh with the functional benefits of a double passage. It is ideal for industrial sites, parking facilities, schools, and other locations where gates are used intensively on a daily basis.

Twice as Strong, Twice as Safe

Brochure
Contact

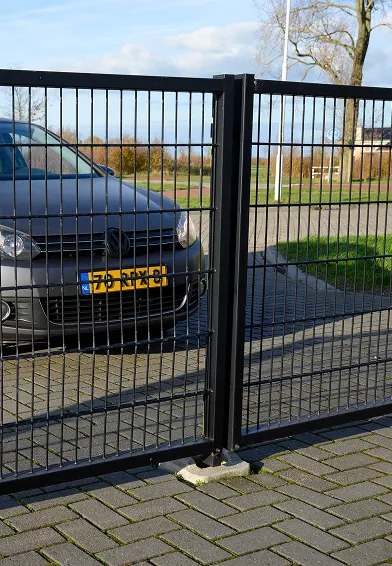

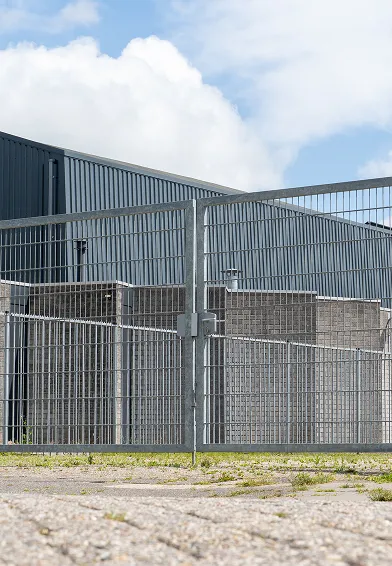

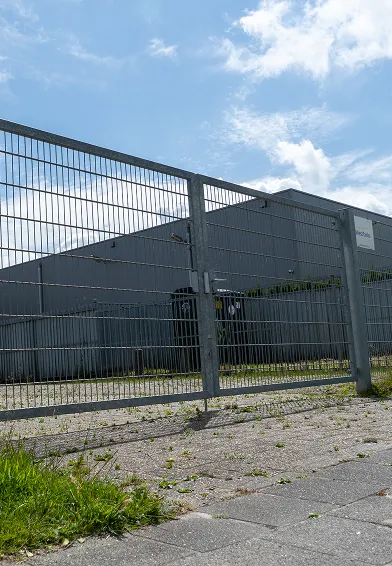

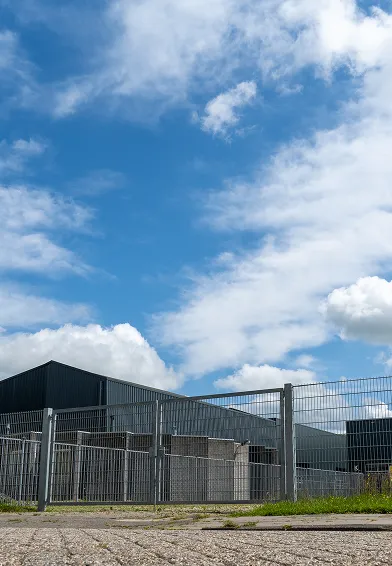

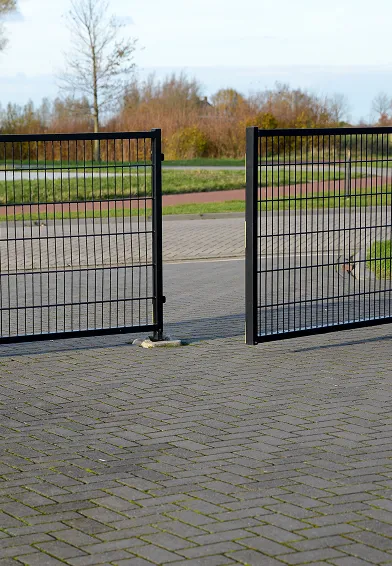

HIS DOUBLE-BAR ON LOCATION

DBBL_DDP_C 4
DBBL_DDP_C 2
DBBL_DDP_C 3
DBBL_DDP_C 1
DBBL_DDP_C 5

Stylish Access with an Exclusive Look

The gate is built from a steel frame with welded double-bar mesh 8/6/8 mm, with a mesh size of 50 × 200 mm. This construction provides a high level of burglary and vandalism resistance. From a gate height of 1400 mm, a standard 35 mm sharp spike row is added at the top to deter unwanted access. Both wings are equipped with internal ground bolts, while the closing wing comes standard with an additional welded ground bolt bracket, providing smart protection against forced opening. Mesh connections are optional and available free of charge upon prior request.

Engineering That Stands Strong

The gate wings are constructed from sturdy steel tube profiles and fitted with double-bar mesh (Ø 8/6/8 mm) with a center-to-center mesh spacing of 50 × 200 mm. The wing height is always just below the gate height, leaving approximately 50 mm ground clearance. The posts are made from steel profiles and extended 800 mm for in-ground installation, ensuring maximum strength. Both wings are mounted with high-quality Locinox 180° hinges, adjustable in four dimensions. The lock is a solid Locinox surface-mounted lock, fitted with a Secura lock receiver for secure locking.

Dimensions

Width x hight (cm)Gate wings (mm)1 = Headers
2 = Beams		Gateposts C-C
Type 200 x 802 x 980 x 800
Type 200 x 1002 x 980 x 1000
Type 200 x 1202 x 980 x 12001 = □ koker 40x40□ 80 x 80
Type 200 x 1402 x 980 x 14002 = □ koker 40x40h.o.h. =
Type 200 x 1602 x 980 x 16002180 mm
Type 200 x 1802 x 980 x 1800
Type 200 x 2002 x 980 x 2000
Type 200 x 2202 x 980 x 2200
Type 200 x 2402 x 980 x 2400
Type 250 x 802 x 1230 x 800
Type 250 x 1002 x 1230 x 1000
Type 250 x 1202 x 1230 x 12001 = □ koker 40x40□ 80 x 80
Type 250 x 1402 x 1230 x 14002 = □ koker 40x40h.o.h. =
Type 250 x 1602 x 1230 x 16002680 mm
Type 250 x 1802 x 1230 x 1800
Type 250 x 2002 x 1230 x 2000
Type 250 x 2202 x 1230 x 2200
Type 250 x 2402 x 1230 x 2400
Type 300 x 802 x 1430 x 800
Type 300 x 1002 x 1430 x 1000
Type 300 x 1202 x 1430 x 12001 = □ koker 40x40□ 80 x 80
Type 300 x 1402 x 1430 x 14002 = □ koker 40x40h.o.h. =
Type 300 x 1602 x 1430 x 16003180 mm
Type 300 x 1802 x 1430 x 1800
Type 300 x 2002 x 1430 x 2000
Type 300 x 2202 x 1430 x 2200
Type 300 x 2402 x 1430 x 2400
Type 350 x 802 x 1730 x 800
Type 350 x 1002 x 1730 x 1000
Type 350 x 1202 x 1730 x 12001 = □ koker 40x40□ 80 x 80
Type 350 x 1402 x 1730 x 14002 = □ koker 40x40h.o.h. =
Type 350 x 1602 x 1730 x 16003680 mm
Type 350 x 1802 x 1730 x 1800
Type 350 x 2002 x 1730 x 2000
Type 350 x 2202 x 1730 x 2200
Type 350 x 2402 x 1730 x 2400
Type 400 x 802 x 1980 x 800
Type 400 x 1002 x 1980 x 1000
Type 400 x 1202 x 1980 x 12001 = □ koker 40x40□ 100 x 100
Type 400 x 1402 x 1980 x 14002 = □ koker 40x40h.o.h. =
Type 400 x 1602 x 1980 x 16004200 mm
Type 400 x 1802 x 1980 x 1800
Type 400 x 2002 x 1980 x 2000
Type 400 x 2202 x 1980 x 2200
Type 400 x 2402 x 1980 x 2400
Type 450 x 802 x 2230 x 800
Type 450 x 1002 x 2230 x 1000
Type 450 x 1202 x 2230 x 12001 = □ koker 40x40□ 100 x 100
Type 450 x 1402 x 2230 x 14002 = □ koker 40x40h.o.h. =
Type 450 x 1602 x 2230 x 16004700 mm
Type 450 x 1802 x 2230 x 1800
Type 450 x 2002 x 2230 x 2000
Type 450 x 2202 x 2230 x 2200
Type 450 x 2402 x 2230 x 2400
Type 500 x 802 x 2480 x 800
Type 500 x 1002 x 2480 x 1000
Type 500 x 1202 x 2480 x 12001 = □ koker 40x40□ 100 x 100
Type 500 x 1402 x 2480 x 14002 = □ koker 40x40h.o.h. =
Type 500 x 1602 x 2480 x 16005200 mm
Type 500 x 1802 x 2480 x 1800
Type 500 x 2002 x 2480 x 2000
Type 500 x 2202 x 2480 x 2200
Type 500 x 2402 x 2480 x 2400
Type 550 x 802 x 2730 x 800
Type 550 x 1002 x 2730 x 1000
Type 550 x 1202 x 2730 x 12001 = □ koker 40x40□ 120 x 120
Type 550 x 1402 x 2730 x 14002 = □ koker 40x40h.o.h. =
Type 550 x 1602 x 2730 x 16005720 mm
Type 550 x 1802 x 2730 x 1800
Type 550 x 2002 x 2730 x 2000
Type 550 x 2202 x 2730 x 2200
Type 550 x 2402 x 2730 x 2400
Type 600 x 802 x 2980 x 800
Type 600 x 1002 x 2980 x 1000
Type 600 x 1202 x 2980 x 12001 = □ koker 40x40□ 120 x 120
Type 600 x 1402 x 2980 x 14002 = □ koker 60x40h.o.h. =
Type 600 x 1602 x 2980 x 16006200 mm
Type 600 x 1802 x 2980 x 1800
Type 600 x 2002 x 2980 x 2000
Type 600 x 2202 x 2980 x 2200
Type 600 x 2402 x 2980 x 2400
Type 650 x 1002 x 3230 x 1000
Type 650 x 1202 x 3230 x 1200
Type 650 x 1402 x 3230 x 1400
Type 650 x 1602 x 3230 x 16001 = □ koker 40x40□ 120 x 120
Type 650 x 1802 x 3230 x 18002 = □ koker 60x40h.o.h. =
Type 650 x 2002 x 3230 x 20006700 mm
Type 650 x 2202 x 3230 x 2200
Type 650 x 2402 x 3230 x 2400
Type 700 x 1002 x 3480 x 1000
Type 700 x 1202 x 3480 x 1200
Type 700 x 1402 x 3480 x 1400
Type 700 x 1602 x 3480 x 16001 = □ koker 60x40□ 120 x 120
Type 700 x 1802 x 3480 x 18002 = □ koker 60x60h.o.h. =
Type 700 x 2002 x 3480 x 20007220 mm
Type 700 x 2202 x 3480 x 2200
Type 700 x 2402 x 3480 x 2400
Type 750 x 1002 x 3730 x 1000
Type 750 x 1202 x 3730 x 1200
Type 750 x 1402 x 3730 x 1400
Type 750 x 1602 x 3730 x 16001 = □ koker 60x40□ 120 x 120
Type 750 x 1802 x 3730 x 18002 = □ koker 60x60h.o.h. =
Type 750 x 2002 x 3730 x 20007720 mm
Type 750 x 2202 x 3730 x 2200
Type 750 x 2402 x 3730 x 2400
Type 800 x 1002 x 3980 x 1000
Type 800 x 1202 x 3980 x 1200
Type 800 x 1402 x 3980 x 1400
Type 800 x 1602 x 3980 x 16001 = □ koker 60x40□ 120 x 120
Type 800 x 1802 x 3980 x 18002 = □ koker 60x60h.o.h. =
Type 800 x 2002 x 3980 x 20008220 mm
Type 800 x 2202 x 3980 x 2200
Type 800 x 2402 x 3980 x 2400
Type 850 x 1002 x 4230 x 1000
Type 850 x 1202 x 4230 x 1200
Type 850 x 1402 x 4230 x 1400
Type 850 x 1602 x 4230 x 16001 = □ koker 60x40□ 120 x 120
Type 850 x 1802 x 4230 x 18002 = □ koker 60x60h.o.h. =
Type 850 x 2002 x 4230 x 20008720 mm
Type 850 x 2202 x 4230 x 2200
Type 850 x 2402 x 4230 x 2400
Type 900 x 1002 x 4480 x 1000
Type 900 x 1202 x 4480 x 1200
Type 900 x 1402 x 4480 x 1400
Type 900 x 1602 x 4480 x 16001 = □ koker 60x40□ 150 x 150
Type 900 x 1802 x 4480 x 18002 = □ koker 60x60h.o.h. =
Type 900 x 2002 x 4480 x 20009250 mm
Type 900 x 2202 x 4480 x 2200
Type 900 x 2402 x 4480 x 2400
Type 950 x 1002 x 4730 x 1000
Type 950 x 1202 x 4730 x 1200
Type 950 x 1402 x 4730 x 1400
Type 950 x 1602 x 4730 x 16001 = □ koker 60x40□ 150 x 150
Type 950 x 1802 x 4730 x 18002 = □ koker 60x60h.o.h. =
Type 950 x 2002 x 4730 x 20009750 mm
Type 950 x 2202 x 4730 x 2200
Type 950 x 2402 x 4730 x 2400
Type 1000 x 1002 x 4980 x 1000
Type 1000 x 1202 x 4980 x 1200
Type 1000 x 1402 x 4980 x 1400
Type 1000 x 1602 x 4980 x 16001 = □ koker 60x40□ 150 x 150
Type 1000 x 1802 x 4980 x 18002 = □ koker 60x60h.o.h. =
Type 1000 x 2002 x 4980 x 200010250 mm
Type 1000 x 2202 x 4980 x 2200
Type 1000 x 2402 x 4980 x 2400

ral cat 1 coating

With no extra cost

The standard version is hot-dip galvanized in accordance with NEN-EN-ISO 1461, but your fence can also be coated in any desired Cat. 1 RAL color at no additional cost. This way it blends seamlessly into any environment. Whether you choose sleek black, industrial anthracite or another shade, the finish is durable and low-maintenance.

CE-marking Safety First​

The gates from HIS Gates comply with all European safety standards and are therefore CE marked. Sliding gates fall under the Machinery Directive MD2006/42/EC, NEN-EN 13241, and NEN-EN 12453, which ensure that potential hazards are properly secured. To prevent accidents, our gates meet the strictest safety standards and are equipped with the most reliable safety components, with the CE marking proving that you have purchased a safe product.

Rectangle 246

For those who want comfort and control, our gates are also available in an electrically operated version. Ideal for automatic access to business sites, residential areas, or parking lots.

Electric Version Available

More about PREFAB ELEctric
