Prijzen vanaf: € ,-

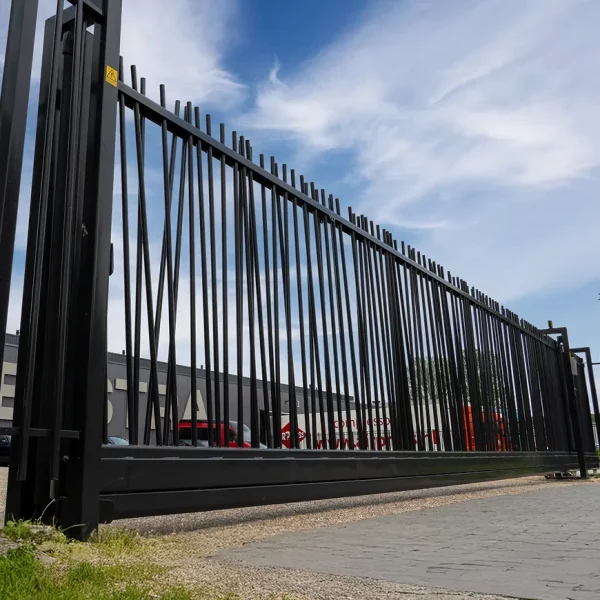

The Mikado sliding gate is designed for those who want to combine functionality with style. The angled bars create a dynamic visual pattern that stands out without being intrusive. This makes the gate ideal for representative business premises and modern architectural projects. Its open design maintains transparency, while the strong construction ensures long-term security and stability.
Robust and stylish Mikado sliding gate designed for safe and smooth access.
Technical specifications
| Gate frame | Bottom beam 120x120 mm with welded rail profile, gate frame 60x60 mm. |

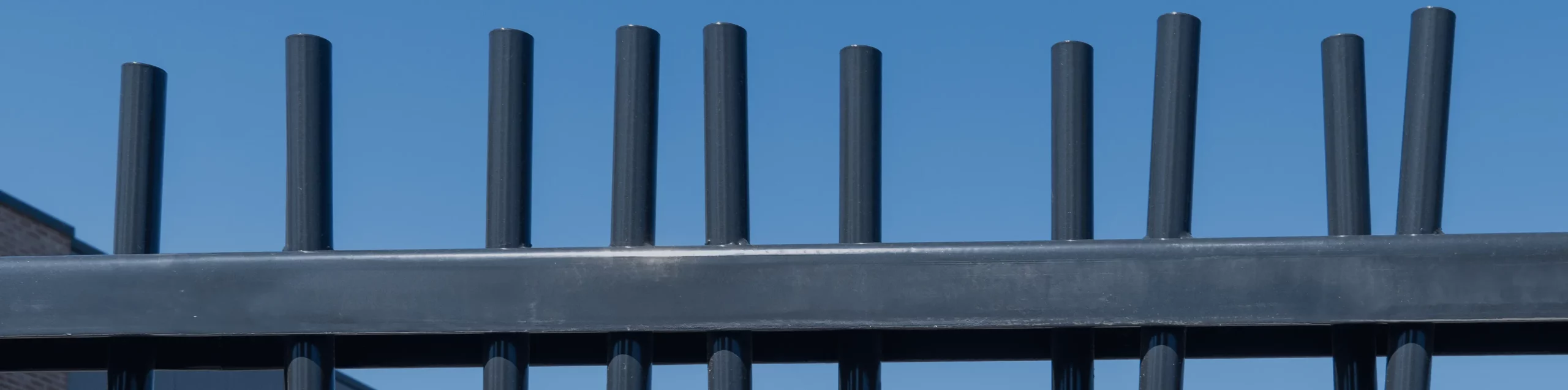

| Gate infill | Bars ø25 mm, maximum center-to-center spacing 140 mm (variable). Welded through the horizontal rails and aligned straight. |
| Wheel sets | 2 adjustable sets with 9 sealed bearing wheels each. |
| Portals | 1 drive portal and 1 catch portal on base plate, constructed from 80x80 mm box section. |
| Mounting plate | Includes 1 wheel set plate for installation of the rear wheel set. |
Non-standard RAL (CAT 1) colors available
at HIS Gates at no additional cost
Dimensions
At HIS Gates, you will find a reliable supplier of gates and fencing in all types and sizes. In addition to our standard range, we provide custom solutions fully tailored to your needs. Whether it concerns a functional entrance gate, a stylish fence, or a complete project, we guarantee quality, durability, and a flawless finish.
| Height → Clear width ↓ |
80 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm |
|---|---|---|---|---|---|---|---|---|
| 300 cm | 80 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm |
| 350 cm | 80 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm |
| 400 cm | 80 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm |
| 450 cm | 80 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm |
| 500 cm | 80 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm |
| 550 cm | 80 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm |
| 600 cm | 80 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm |
| 650 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |
| 700 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |
| 750 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |
| 800 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |
| 850 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |
| 900 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |
| 950 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |
| 1000 cm | 100 cm | 125 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |
| 1050 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |||
| 1100 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |||
| 1150 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm | |||
| 1200 cm | 150 cm | 180 cm | 200 cm | 225 cm | 250 cm |
Also available as prefab electric version
Our prefab sliding gates are designed for fencing companies that value quality, efficiency, and reliability. The gates are delivered fully pre-assembled, including rail, guides, and drive technology, allowing for quick and easy on-site installation. Thanks to the use of high-quality materials and durable components, our sliding gates offer a long lifespan, minimal maintenance, and optimal safety. Whether for residential applications or industrial sites, our prefab solutions save time on-site and ensure a professional end result for your client.

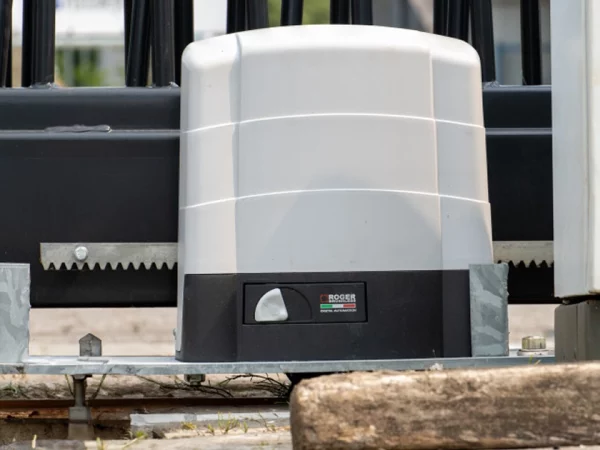

Roger BG30/1804HS
The Roger BG30/1804HS is a robust and efficient brushless sliding gate motor, designed for demanding applications where reliability, durability, and safety are essential. Thanks to its advanced technology, this motor is ideal for use in prefab sliding gates, offering quiet operation and minimal maintenance requirements. With strong pulling power, electronic controllers, and the option for backup power supply, it is an excellent choice for fencing professionals seeking a powerful and future-proof drive system.
| Maximum gate weight | 1,000 kg |
| Maximum gate length | 7,000 mm |
| Nominal power supply | 230 V AC / 24 V DC |
| Motor power supply | 24 V DC |
| Nominal power | 200–300 W |
| Speed / movement speed | 12 m/min ≈ 0.20 m/s |
| Limit switches | Magnetic |
| Protection rating | IP44 / IP54 |
| Temperature range | −20 °C to +55 °C |
| Emergency power supply | Optional via internal or external battery |
| Control unit | Integrated digital controller (HS version) |
| Standby consumption | ≤ 0.5 W |
Robust industrial gate lock
Locinox LSKZU2
Our Locinox surface-mounted industrial lock is engineered for maximum reliability and ease of use on sliding gates. The combination of a durable aluminum housing and stainless steel internal components ensures a long lifespan, even under demanding conditions. With adjustable bolts, universal installation, and compatibility with various profile types, this lock offers a versatile solution for any professional fencing installation.
| Lock type | Industrial surface-mounted lock |
| Deadbolt locking depth | 23 mm |
| Adjustable per bolt | 20 mm (without removing the lock case) |
| Center distance between bolts | 60 mm |
| Housing material | Aluminum (KTL-coated / anodized) |
| Internal mechanism material | Stainless steel (SS) |
| Adjustments | Reversible latch bolt, adjustable bolts |
| Compatible profile types | Square, round, and flat profiles |
| Mounting | 4 holes, 2 hex bolts |
| Color / finish | Silver or RAL colors (6005, 7016, 9005, 9010) |
| Locking mechanism | 100% mechanical, no electricity required |
Wheel sets
9 wheels combi arialdo medium
The Combi Arialdo 9999 MEDIO wheel set is designed for medium-duty, cantilever sliding gates used in residential, commercial, and industrial applications. The set includes nine galvanized steel wheels that ensure smooth and stable operation. The wheels feature low-maintenance, dustproof bearings for long-lasting performance. With a robust finish and precise fit, these wheels provide effortless movement and easy installation. Ideal for professional fencing companies that value quality and durability.
| Type | Wheel set for cantilever sliding gates |
| Model | Combi Arialdo 9999 MEDIO |
| Number of wheels | 9 pieces |
| Application | Cantilever sliding gates, medium weight |
| Wheel material | Galvanized steel |
| Bearings | Sealed and maintenance-free, dustproof bearings |
| Installation | Easy installation in standard rail profile |
| Suitable gate weight | Depending on profile, medium class |
| Finish | Galvanized, corrosion-resistant |
| Application area | Residential, commercial, and industrial use |
FAQ
What are the delivery times?
The average delivery time for a galvanized gate is approximately 4 weeks. For a coated version, please allow a delivery time of around 6 weeks.
What finish will my sliding gate have?
At HIS Gates, your fencing can be coated in any desired Category 1 RAL color at no additional cost. The standard version is hot-dip galvanized in accordance with NEN-EN-ISO 1461, but with a powder coating, your fencing blends seamlessly into its surroundings. Whether you choose sleek black, industrial anthracite, or another shade, the finish is durable and low-maintenance.
How are the gates delivered?
The sliding gates are delivered to you directly by the galvanizing or coating supplier.
Which safety standards apply?
The sliding gates from HIS Gates comply with all European safety standards and are therefore CE certified. Sliding gates fall under the Machinery Directive MD 2006/42/EC, as well as standards NEN-EN13241 and NEN-EN12453, which ensure that all potential hazards are properly safeguarded. To prevent accidents, our gates meet the highest safety requirements and are equipped with the most reliable safety components, with the CE marking confirming that you have purchased a safe and compliant product.
