Prices from: € 481,-

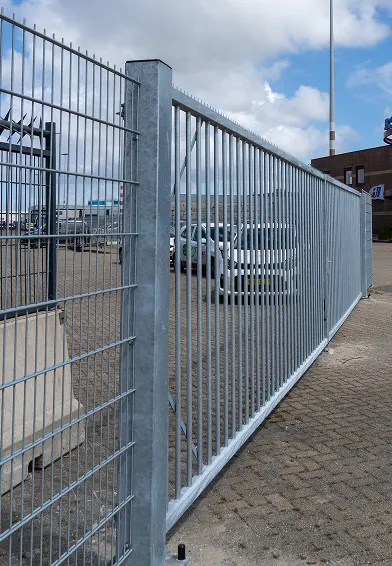

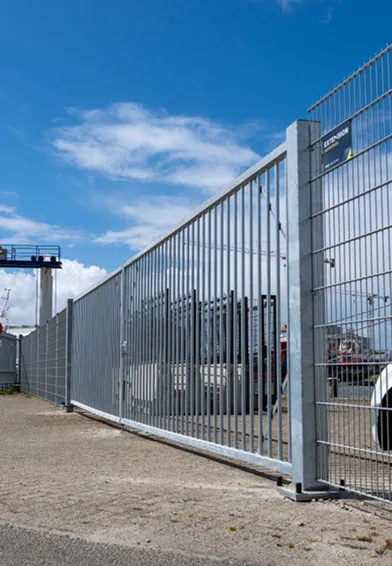

The HIS Double Swing Gate provides controlled access to industrial sites, parking areas, and other professional locations. Thanks to its solid steel construction and durable finish, the gate remains reliable for years of intensive use. Available in various sizes and configurations, it can be tailored to perfectly suit any site. HIS Gates ensures fast delivery, competitive pricing, and full customization for every project.
Robust HIS Double Swing Gate for intensive daily use.
Technical specifications
| Gate frame | Fitted with welded bars ø25 mm, spaced 150 mm center-to-center. |

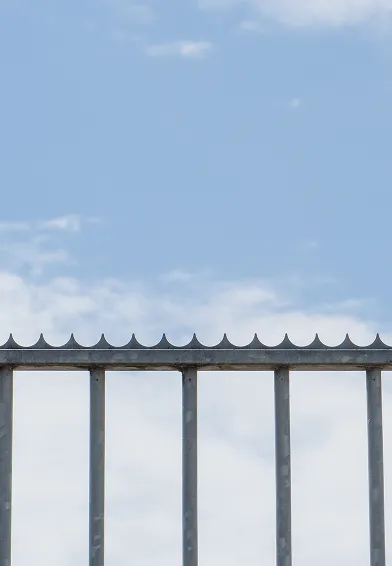

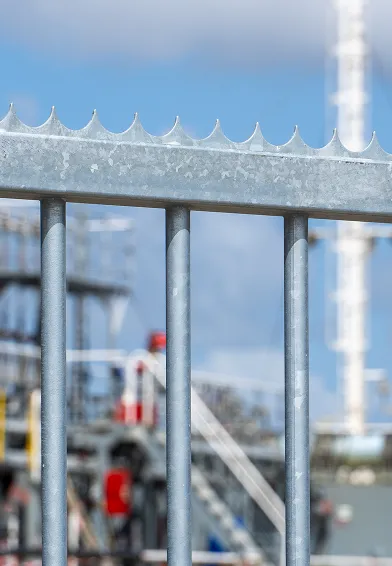

| Top spikes | From gate height 1500 mm, standard 35 mm sharp spike strip on top. |
| Hinges | M20/M24 screw-in hinge or Locinox 180° rotatable, 4-dimensionally adjustable. |
| Drop bolts | Both wings equipped with internal drop bolts. The wing with the lock case comes standard with a welded drop bolt bracket (anti-pry protection). |
| Leaf height | Gate height minus 50 mm ground clearance. |
| Lock | Locinox LAKQU2 |
Non-standard RAL (CAT 1) colors available
at HIS Gates at no additional cost
Dimensions
At HIS Gates, you will find a reliable supplier of gates and fencing in all types and sizes. In addition to our standard range, we provide custom solutions fully tailored to your needs. Whether it concerns a functional entrance gate, a stylish fence, or a complete project, we guarantee quality, durability, and a flawless finish.
| Width x Height (cm) | Gate wings (mm) | 1 = Uprights 2 = Rails |
Gate posts center-to-center |
|---|---|---|---|
| Type 200 x 80 | 2 x 950 x 750 | ||
| Type 200 x 100 | 2 x 950 x 950 | ||
| Type 200 x 125 | 2 x 950 x 1200 | 1 = □ box section 40x40 | □ 80 x 80 |
| Type 200 x 150 | 2 x 950 x 1450 | 2 = □ box section 60x40 | center-to-center = |
| Type 200 x 180 | 2 x 950 x 1750 | 2120 mm | |
| Type 200 x 200 | 2 x 950 x 1950 | ||
| Type 200 x 225 | 2 x 950 x 2200 | ||
| Type 200 x 250 | 2 x 950 x 2370 |
More Dimensions
| Breedte x hoogte (cm) | Poortvleugels (mm) | 1 = Kopstijlen 2 = Liggers | Poortpalen center-to-center |
|---|---|---|---|
| Type 250 x 80 | 2 x 1250 x 750 | ||
| Type 250 x 100 | 2 x 1250 x 950 | ||
| Type 250 x 125 | 2 x 1250 x 1200 | 1 = □ tube 40x40 | □ 80 x 80 |
| Type 250 x 150 | 2 x 1250 x 1450 | 2 = □ tube 60x40 | center-to-center = |
| Type 250 x 180 | 2 x 1250 x 1750 | 2720 mm | |
| Type 250 x 200 | 2 x 1250 x 1950 | ||
| Type 250 x 225 | 2 x 1250 x 2200 | ||
| Type 250 x 250 | 2 x 1250 x 2370 |
| Type 300 x 80 | 2 x 1550 x 750 | ||
| Type 300 x 100 | 2 x 1550 x 950 | ||
| Type 300 x 125 | 2 x 1550 x 1200 | 1 = □ tube 40x40 | □ 80 x 80 |
| Type 300 x 150 | 2 x 1550 x 1450 | 2 = □ tube 60x40 | center-to-center = |
| Type 300 x 180 | 2 x 1550 x 1750 | 3320 mm | |
| Type 300 x 200 | 2 x 1550 x 1950 | ||
| Type 300 x 225 | 2 x 1550 x 2200 | ||
| Type 300 x 250 | 2 x 1550 x 2370 |
| Type 350 x 80 | 2 x 1700 x 750 | ||
| Type 350 x 100 | 2 x 1700 x 950 | ||
| Type 350 x 125 | 2 x 1700 x 1200 | 1 = □ tube 40x40 | □ 80 x 80 |
| Type 350 x 150 | 2 x 1700 x 1450 | 2 = □ tube 60x40 | center-to-center = |
| Type 350 x 180 | 2 x 1700 x 1750 | 3620 mm | |
| Type 350 x 200 | 2 x 1700 x 1950 | ||
| Type 350 x 225 | 2 x 1700 x 2200 | ||
| Type 350 x 250 | 2 x 1700 x 2370 |
| Type 400 x 80 | 2 x 2000 x 750 | ||
| Type 400 x 100 | 2 x 2000 x 950 | ||
| Type 400 x 125 | 2 x 2000 x 1200 | 1 = □ tube 40x40 | □ 100 x 100 |
| Type 400 x 150 | 2 x 2000 x 1450 | 2 = □ tube 60x40 | center-to-center = |
| Type 400 x 180 | 2 x 2000 x 1750 | 4240 mm | |
| Type 400 x 200 | 2 x 2000 x 1950 | ||
| Type 400 x 225 | 2 x 2000 x 2200 | ||
| Type 400 x 250 | 2 x 2000 x 2370 |
| Type 450 x 80 | 2 x 2300 x 750 | ||
| Type 450 x 100 | 2 x 2300 x 950 | ||
| Type 450 x 125 | 2 x 2300 x 1200 | 1 = □ tube 40x40 | □ 100 x 100 |
| Type 450 x 150 | 2 x 2300 x 1450 | 2 = □ tube 60x40 | center-to-center = |
| Type 450 x 180 | 2 x 2300 x 1750 | 4840 mm | |
| Type 450 x 200 | 2 x 2300 x 1950 | ||
| Type 450 x 225 | 2 x 2300 x 2200 | ||
| Type 450 x 250 | 2 x 2300 x 2370 |
| Type 500 x 80 | 2 x 2450 x 750 | ||
| Type 500 x 100 | 2 x 2450 x 950 | ||
| Type 500 x 125 | 2 x 2450 x 1200 | 1 = □ tube 40x40 | □ 100 x 100 |
| Type 500 x 150 | 2 x 2450 x 1450 | 2 = □ tube 60x40 | center-to-center = |
| Type 500 x 180 | 2 x 2450 x 1750 | 5140 mm | |
| Type 500 x 200 | 2 x 2450 x 1950 | ||
| Type 500 x 225 | 2 x 2450 x 2200 | ||
| Type 500 x 250 | 2 x 2450 x 2370 |
| Type 550 x 80 | 2 x 2700 x 750 | ||
| Type 550 x 100 | 2 x 2700 x 950 | ||
| Type 550 x 125 | 2 x 2700 x 1200 | 1 = □ tube 40x40 | □ 100 x 100 |
| Type 550 x 150 | 2 x 2700 x 1450 | 2 = □ tube 60x40 | center-to-center = |
| Type 550 x 180 | 2 x 2700 x 1750 | 5640 mm | |
| Type 550 x 200 | 2 x 2700 x 1950 | ||
| Type 550 x 225 | 2 x 2700 x 2200 | ||
| Type 550 x 250 | 2 x 2700 x 2370 |
| Type 600 x 80 | 2 x 2900 x 750 | ||
| Type 600 x 100 | 2 x 2900 x 950 | ||
| Type 600 x 125 | 2 x 2900 x 1200 | 1 = □ tube 40x40 | □ 120 x 120 |
| Type 600 x 150 | 2 x 2900 x 1450 | 2 = □ tube 60x40 | center-to-center = |
| Type 600 x 180 | 2 x 2900 x 1750 | 6060 mm | |
| Type 600 x 200 | 2 x 2900 x 1950 | ||
| Type 600 x 225 | 2 x 2900 x 2200 | ||
| Type 600 x 250 | 2 x 2900 x 2370 |
| Type 650 x 100 | 2 x 3200 x 950 | ||
| Type 650 x 125 | 2 x 3200 x 1200 | 1 = □ tube 40x40 | □ 120 x 120 |
| Type 650 x 150 | 2 x 3200 x 1450 | 2 = □ tube 60x40 | center-to-center = |
| Type 650 x 180 | 2 x 3200 x 1750 | 6660 mm | |
| Type 650 x 200 | 2 x 3200 x 1950 | ||
| Type 650 x 225 | 2 x 3200 x 2200 | ||
| Type 650 x 250 | 2 x 3200 x 2370 |
| Type 700 x 100 | 2 x 3500 x 950 | ||
| Type 700 x 125 | 2 x 3500 x 1200 | 1 = □ tube 60x40 | □ 120 x 120 |
| Type 700 x 150 | 2 x 3500 x 1450 | 2 = □ tube 60x60 | center-to-center = |
| Type 700 x 180 | 2 x 3500 x 1750 | 7260 mm | |
| Type 700 x 200 | 2 x 3500 x 1950 | ||
| Type 700 x 225 | 2 x 3500 x 2200 | ||
| Type 700 x 250 | 2 x 3500 x 2370 |
| Type 750 x 100 | 2 x 3700 x 950 | ||
| Type 750 x 125 | 2 x 3700 x 1200 | 1 = □ tube 60x40 | □ 120 x 120 |
| Type 750 x 150 | 2 x 3700 x 1450 | 2 = □ tube 60x60 | center-to-center = |
| Type 750 x 180 | 2 x 3700 x 1750 | 7660 mm | |
| Type 750 x 200 | 2 x 3700 x 1950 | ||
| Type 750 x 225 | 2 x 3700 x 2200 | ||
| Type 750 x 250 | 2 x 3700 x 2370 |
| Type 800 x 100 | 2 x 3950 x 950 | ||
| Type 800 x 125 | 2 x 3950 x 1200 | 1 = □ tube 60x40 | □ 120 x 120 |
| Type 800 x 150 | 2 x 3950 x 1450 | 2 = □ tube 60x60 | center-to-center = |
| Type 800 x 180 | 2 x 3950 x 1750 | 8190 mm | |
| Type 800 x 200 | 2 x 3950 x 1950 | ||
| Type 800 x 225 | 2 x 3950 x 2200 | ||
| Type 800 x 250 | 2 x 3950 x 2370 |
| Type 850 x 100 | 2 x 4250 x 950 | ||
| Type 850 x 125 | 2 x 4250 x 1200 | 1 = □ tube 60x40 | □ 150 x 150 |
| Type 850 x 150 | 2 x 4250 x 1450 | 2 = □ tube 60x60 | center-to-center = |
| Type 850 x 180 | 2 x 4250 x 1750 | 8790 mm | |
| Type 850 x 200 | 2 x 4250 x 1950 | ||
| Type 850 x 225 | 2 x 4250 x 2200 | ||
| Type 850 x 250 | 2 x 4250 x 2370 |
| Type 900 x 100 | 2 x 4400 x 950 | ||
| Type 900 x 125 | 2 x 4400 x 1200 | 1 = □ tube 60x40 | □ 150 x 150 |
| Type 900 x 150 | 2 x 4400 x 1450 | 2 = □ tube 60x60 | center-to-center = |
| Type 900 x 180 | 2 x 4400 x 1750 | 9090 mm | |
| Type 900 x 200 | 2 x 4400 x 1950 | ||
| Type 900 x 225 | 2 x 4400 x 2200 | ||
| Type 900 x 250 | 2 x 4400 x 2370 |
| Type 950 x 100 | 2 x 4700 x 950 | ||
| Type 950 x 125 | 2 x 4700 x 1200 | 1 = □ tube 60x40 | □ 150 x 150 |
| Type 950 x 150 | 2 x 4700 x 1450 | 2 = □ tube 60x60 | center-to-center = |
| Type 950 x 180 | 2 x 4700 x 1750 | 9690 mm | |
| Type 950 x 200 | 2 x 4700 x 1950 | ||
| Type 950 x 225 | 2 x 4700 x 2200 | ||
| Type 950 x 250 | 2 x 4700 x 2370 |
| Type 950 x 100 | 2 x 4700 x 950 | ||
| Type 950 x 125 | 2 x 4700 x 1200 | 1 = □ tube 60x40 | □ 150 x 150 |
| Type 950 x 150 | 2 x 4700 x 1450 | 2 = □ tube 60x60 | center-to-center = |
| Type 950 x 180 | 2 x 4700 x 1750 | 9690 mm | |
| Type 950 x 200 | 2 x 4700 x 1950 | ||
| Type 950 x 225 | 2 x 4700 x 2200 | ||
| Type 950 x 250 | 2 x 4700 x 2370 |
| Type 1000 x 100 | 2 x 5000 x 950 | ||
| Type 1000 x 125 | 2 x 5000 x 1200 | 1 = □ tube 60x40 | □ 150 x 150 |
| Type 1000 x 150 | 2 x 5000 x 1450 | 2 = □ tube 60x60 | center-to-center = |
| Type 1000 x 180 | 2 x 5000 x 1750 | 10290 mm | |
| Type 1000 x 200 | 2 x 5000 x 1950 | ||
| Type 1000 x 225 | 2 x 5000 x 2200 | ||
| Type 1000 x 250 | 2 x 5000 x 2370 |
| Type 1100 x 150 | 2 x 5450 x 1450 | ||
| Type 1100 x 180 | 2 x 5450 x 1750 | 1 = □ tube 60x40 | □ 150 x 150 |
| Type 1100 x 200 | 2 x 5450 x 1950 | 2 = □ tube 60x60 | center-to-center = |
| Type 1100 x 225 | 2 x 5450 x 2200 | 11190 mm | |
| Type 1100 x 250 | 2 x 5450 x 2370 |
| Type 1200 x 150 | 2 x 5900 x 1450 | ||
| Type 1200 x 180 | 2 x 5900 x 1750 | 1 = □ tube 60x40 | □ 150 x 150 |
| Type 1200 x 200 | 2 x 5900 x 1950 | 2 = □ tube 60x60 | center-to-center = |
| Type 1200 x 225 | 2 x 5900 x 2200 | 12090 mm | |
| Type 1200 x 250 | 2 x 5900 x 2370 |
Also available as prefab electric version
Our double swing gates are suitable for a wide range of projects, from private properties to commercial and industrial sites. Manufactured from high-quality steel, they provide a secure and durable enclosure. The gates are available in both manual and prefab electric versions, equipped with Sommer Twist 350 or Sommer Twist XL motors. Thanks to our in-house production and short delivery times, fencing companies can rely on robust gates that are quick and efficient to install.
Sommer Twist 350
The Sommer Twist 350 is a powerful and versatile swing gate operator, ideal for projects where reliability, safety, and functionality are key. Suitable for both single and double leaves, it combines robust performance with easy integration into prefab electric gates.
| Maximum leaf weight | 700 kg |
| Maximum leaf length | 4,000 mm |
| Nominal voltage | 220–240 V AC |
| Motor voltage | 24 V DC |
| Speed (actuating force movement) | 18 mm/s |
| Maximum opening angle | 121° |
| Number of radio channels | 2 |
| Duty cycle (ED / S3) | 40% / S3 |
| Protection rating (drive unit) | IP44 |
| Protection rating (control unit) | IP65 |
| Temperature range | −30 °C to +70 °C |
Sommer Twist XL
The Sommer Twist XL is a powerful and robust swing gate operator, specifically designed for heavy-duty and large gates. It is highly suitable for industrial environments, commercial sites, and projects that demand exceptional durability and reliability. Thanks to its prefab delivery, this drive can be seamlessly integrated into your gate system, ensuring minimal installation effort and maximum performance.
| Maximum leaf weight | 1,100 kg |
| Maximum leaf length | 7,000 mm |
| Nominal voltage | 220 – 240 V AC |
| Motor voltage | 24 V DC |
| Speed (power transmission) | 20 mm/s |
| Maximum opening angle | 110° |
| Number of radio channels | 2 |
| Duty cycle (ED / S3) | 40% / S3 |
| Protection class (drive unit) | IP44 |
| Protection class (control unit) | IP65 |
| Temperature range | −25 °C to +70 °C |
Robust industrial gate lock
Locinox LAKQ U2
The Locinox LAKQ U2 is a high-quality surface-mounted lock for industrial gates and access doors, built with an aluminum housing and a fully stainless steel internal mechanism. With 20 mm adjustability on both bolts, you can fine-tune the locking engagement precisely. The solid 23 mm deadbolt throw adds security, while the lock mounts easily on various profile types (square, round, or flat). The LAKQ U2 is built for intensive duty cycles and is ideal for projects where durability and reliability are essential.
| Lock type | Industrial surface-mounted lock |
| Deadbolt throw | 23 mm |
| Adjustability per bolt | 20 mm (without removing the lock case) |
| Center distance between bolts | 60 mm |
| Housing material | Aluminum (KTL-coated / anodized) |
| Internal mechanism material | Stainless steel (SS) |
| Adjustments | Reversible latch bolt, adjustable bolts |
| Compatible profile types | Square, round, and flat profiles |
| Mounting | 4 holes, 2 hex bolts |
| Color / finish | Silver or RAL colors (6005, 7016, 9005, 9010) |
| Locking mechanism | 100% mechanical, no electricity required |
Hinges
Locinox GBMU4D
This high-quality hinge from Locinox provides maximum flexibility in gate installation and adjustment. Thanks to its four-dimensional adjustability (height, depth, lateral alignment, and rotation up to 180°), the gate leaf can be perfectly aligned, even in challenging situations. The robust design, made from corrosion-resistant materials, ensures long-term durability and is ideal for intensive use where precision and safety are paramount.
| Hinge type | 4-dimensional adjustable hinge |
| Opening angle | 180° |
| Adjustable directions | Height, lateral alignment, depth, position |
| Material | Anodized aluminum and stainless steel (SS) |
| Corrosion protection | Anodized / stainless steel finish |
| Application area | Gates, doors, access systems |
| Mounting | Screw mounting via plate installation |
| Profile compatibility | Suitable for various profile types up to specific dimensions |
| Usage | Indoor and outdoor, intensive use |
| Temperature range | –30 °C to +70 °C |
Locinox 90° M20
This robust hinge offers a 90° opening angle and features a weld nut and weld ear made of raw steel, suitable for welding. The M20 eyebolt measures 67 mm in length and is fully hot-dip galvanized for long-lasting corrosion protection. It’s designed for industrial and security gate applications where strength and durability are essential.
| Hinge type | Anti-vandalism gate hinge |
| Opening angle | 90° |
| Adjustable directions | Height, depth |
| Material | Steel, hot-dip galvanized |
| Corrosion protection | Hot-dip galvanization |
| Application area | Industrial gates, secured access systems |
| Mounting | Weld-on installation with M20 eyebolt |
| Profile compatibility | Suitable for steel gates with profile posts |
| Usage | Indoor and outdoor, intensive use |
| Temperature range | –30 °C to +70 °C |
FAQ
What are the delivery times?
The average delivery time for a galvanized gate is approximately 4 weeks. For a coated version, please allow a delivery time of around 6 weeks.
What finish will my gate have?
At HIS Gates, your fencing can be coated in any desired Category 1 RAL color at no additional cost. The standard version is hot-dip galvanized in accordance with NEN-EN-ISO 1461, but with a powder coating, your fencing blends seamlessly into its surroundings. Whether you choose sleek black, industrial anthracite, or another shade, the finish is durable and low-maintenance.
How are the gates delivered?
The gates are delivered to you directly by the galvanizing or coating supplier.
Which safety standards apply?
The Gates from HIS Gates comply with all European safety standards and are therefore CE certified. Sliding gates fall under the Machinery Directive MD 2006/42/EC, as well as standards NEN-EN13241 and NEN-EN12453, which ensure that all potential hazards are properly safeguarded. To prevent accidents, our gates meet the highest safety requirements and are equipped with the most reliable safety components, with the CE marking confirming that you have purchased a safe and compliant product.
Related products
Contact us
Contact us directly
0515 443 713
Send us an email
sales@hisgates.com
